GVDA Digital Jenis Pena Multimeter DC Penguji Tegangan AC Smart Multi-meter Pengukur Tegangan Volt NCV Urutan Fase Auto Mulai Multimeter

GD109 is a pocket type  digits pen-type smart multimeter, with true RMS. It will automatically identify DC voltage/AC voltage/resistance and measure, with no need to turn the dial to switch, easy to operate. Also, it features with stable performance, high precision, auto-off after 15min non-operation for energy saving, capacitance/diode/more test, overload protection, continuity test, non-contact voltage measurement(NCV), zero live line measurement, phase sequence measurement, etc. A perfect tool for professional, factory, school, enthusiast or family use.

Poin Khusus

MULTIMETER PEN SERBAGUNA:

This multimeter features test of  voltage / resistance / capacitance / diode / frequency / NCV/ continuity, zero line non-contact phase sequence detection, etc.

RESPON CEPAT AKURASI TIN&I:

GVDA GD109, 4000 counts multimeter tipe pena digital, memiliki kecepatan sampling 3 kali per detik dan pengukuran presisi tinggi.

PENGOPERASIAN MUDAH:

 Ini memiliki layar LCD Warna yang jelas, mudah untuk membaca nilai yang diukur, senter tersedia untuk kegelapan, fungsi penyimpanan data yang nyaman untuk meminta data, alarm berbunyi saat digunakan.

UKURAN PORTABEL BAHAN TAHAN LAMA:

Meteran, terbuat dari komponen elektronik pilihan dan rumah plastik kokoh, dirancang dengan bobot yang ringan dan-mudah-dibawa dengan ukuran saku, nyaman digenggam.

APLIKASI LUAS:

Multimeter digital--instrumen dan asisten praktis, untuk menguji, mendiagnosis, dan memecahkan berbagai masalah kelistrikan otomotif dan rumah tangga sehari-hari dengan aman dan akurat.

Data teknis

More Details

Smart Pen type Multimeter auto range GD109 New arrive

Pengukuran Cerdas

Smart measurement apply for the measuring of DC voltage, AC voltage, resistance, continuity and can automatically identify the measurement signal.

CATATAN:Tegangan terukur minimum dari mode ini adalah sekitar 0.8V

Multi Fungsi

AC DC Voltage test / NCV Measurement/ Resistance / Frequency  / Capacitance / Diode / Continue test / Live wire detection / Non contact Phase Sequency detector / Data hold/ Auto power off / Flashlight / True RMS / On off test

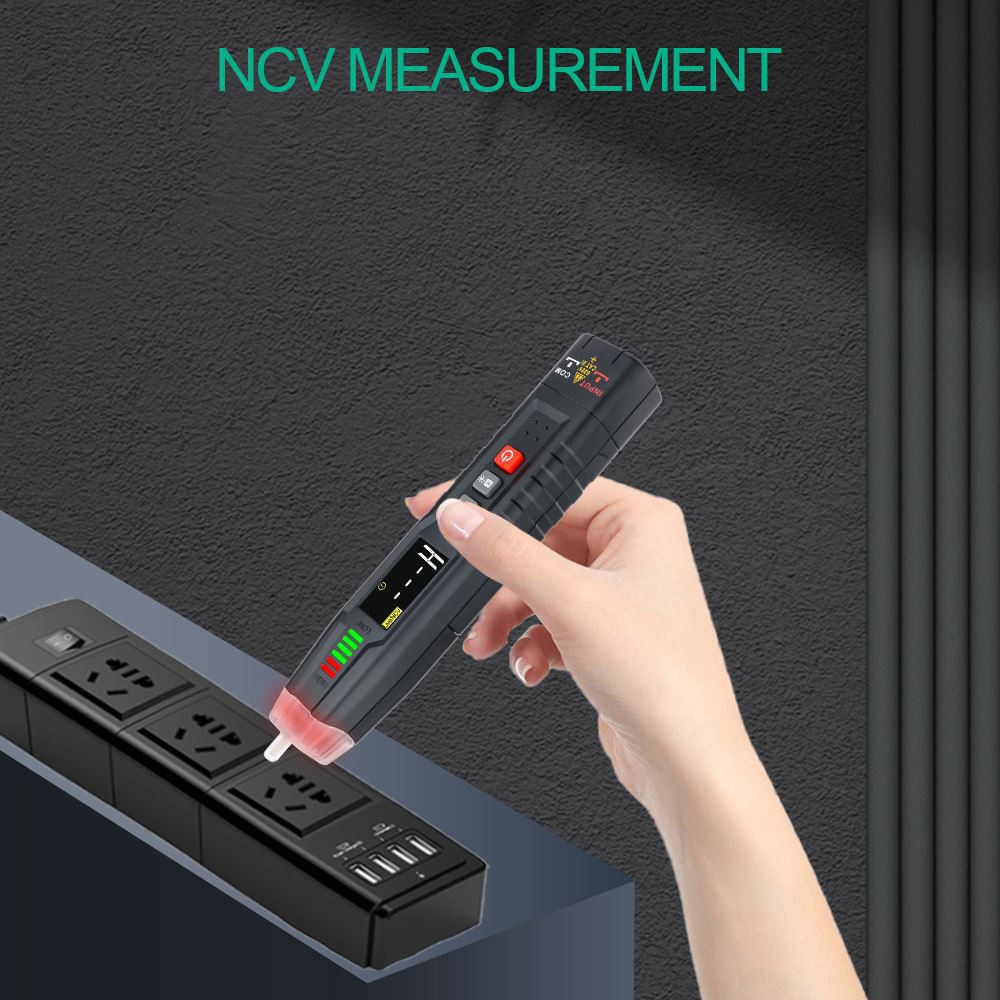

Pengukuran NCV

1)  Press POWER ON  key to power on into NCV measurement mode by default

2) Secara bertahap tutup area penginderaan NCV ke konduktor yang diukur

● When the weak electric field signal is detected, it will display "---L"; the buzzer will sound slowly and the green light on.

●When the strongelectric field signal is detected, it will display "---H"; the buzzer will sound quickly and the red light on.

Live Wire Detection

● When the weak electric field signal is detected, it will display "---L"; the buzzer will sound slowly and the green light on.

●When the strongelectric field signal is detected, it will display "---H"; the buzzer will sound quickly and the red light on.

Deteksi Urutan Fase Non Kontak

1)  Press POWER ON key to power on,

2) Press "FUNC" key to select "Phase"gear to enter the phase sequence detection state

a) Displaythe "PA" symbol with the "A" letter flashing and sticks the sensing probe to the first phase line, waiting for a beep

b) Displaythe "PAB" symbol with the "B" letter flashingand stick the sensing probe to the second phase line and wait for a beep

c) Displaythe "PABC" symbol with the "C" letter flashingand stick the sensing probe to the second phase line and wait for a long beep

d) At the end of the test, the display will display the measurement results on the display

◆"P --- L" symbol displayed on the screen indicates left-handed phase sequence ◆"P --- R" symbol displayed on the screen indicates right -handed phase sequence

Senter LED

Layar LCD Warna HD

Sumber Daya listrik

Baterai AAA 2x1.5V dapat diganti

Tes Fungsi

AC DC Voltage test / Capacitance test / Frequency test / Diode test  / on-off beep test /

Isi Kemasan:

1 multimeter, 1 probe, 1 manual, 1 kotak

Wide Application

Apply for Beginners / Electronic circuit installation / Electronic maintenance / Electromechanical mainenance / Vehicle inspection / Maintenance Household application
